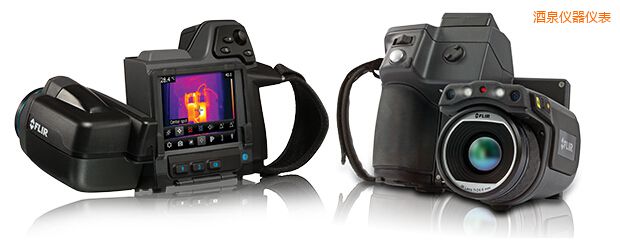

酒泉熱成像相機-T620-美國FLIR

為確保設備可靠運行，紅外熱像儀原理圖，您需要能夠幫助您快速查找和報告問題的故障排除工具。這正是 FLIR 紅外相機不可或缺的原因所在。FLIR 紅外相機能夠使您盡早察覺由電阻和機械磨損產生的不可見熱量，紅外熱像儀flir，以助您防范代價高昂的停機時間和潛在危險。在所有熱像儀產品中，T 系列產品是您捕捉和分享結果最輕松、最快捷的選擇，是釋放 FLIR 能量的終極方案！

極限分辨率

FLIR 具有最強成像性能和精度的手持產品

3 superior thermal imaging choices including 640 × 480 native resolution
Up to 1.2 MP thermal resolution with UltraMax™ – a 4× improvement for finer detail and accuracy
MSX® enhancement that etches key visible details such as numbers, labels, etc. onto live, stored, and UltraMax thermal images for easier locating
Class-leading sensitivity as fine as <0.02°C for outstanding image quality and subtler thermal patterns
Temperature range calibrations up to 2,000°C for measuring the hottest targets最佳人體工程學
覆蓋所有角度 - 更快成像 - 工作更舒適

T 系列相機具有無與倫比的靈活性，能夠非常輕松地瞄準、聚焦和使用。

旋轉的聚光裝置可上下旋轉 120 度
自動定向可切換屏幕數據為肖像視圖或風景視圖
最快速的自動對焦、手動控制，防爆紅外熱像儀，以及更出色的精確成像

快速通信

即時生成數據，更快速地返回決策

借助無線途經或 FLIR 工具（PC 或 Mac 版）分享圖像和嵌入表數據。

FLIR 工具移動應用程序可連接相機與移動設備，從而使您能夠對現場熱視頻進行流處理、采取遠程控制、分析存儲的圖像，手持紅外熱像儀，并迅速通過電子郵件傳送現場發現。
FLIR MeterLink® 測試與測量工具可直接向相機傳輸可讀數據，美國flir紅外熱像儀，相機會(huì )在您捕獲數據時存儲輻射圖像的數據，以用于報告中。
FLIR 工具報告軟件還提供更多功能，可以將更多測量工具添加到圖像中，生成深入的報告以及更新相機固件等。

提高生產力

有用的配件

可選鏡頭及更多飾品

可更換長焦，高速紅外熱像儀，廣角和特寫鏡頭
額外的電池和充電器

備用電纜和SD卡
攝影包和疑難案件

卓越的支持

隨時準備幫助您得到最出你的 T-系列

專業的客戶服務，紅外熱像儀產品，以解決應用問題，非制冷紅外熱像儀，并正確的滿足您的需求
技術支持，以幫助校準和其他維護維修
FLIR的獨家2-5-10保修，意大利紅外熱像儀，可以幫助保護您的投資
ITC 從熱成像培訓的黃金標準的教育和認證

	T420	T440	T460	T600	T620	T640	T660
Accuracy	+/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal		+/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal	+/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal			+/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal
Thermal Resolution	76,800 (320 × 240)			172,800 (480 × 360)	307,200 (640 × 480)
Thermal Sensitivity	<0.04°C @ 30°C		<0.03°C @ 30°C	<0.04°C @ 30°C		<0.03°C @ 30°C	<0.02°C @ 30°C
Temperature Range	-4°F to 1,202°F (-20°C to 650°C) Optional to 2,192°F (1,200°C)	-4°F to 2,192°F (-20°C to 1,200°C)	-4°F to 2,732°F (-20°C to 1,500°C)	-40°F to 1202°F (-40°C to 650°C)	-40°F to 1,202°F (-40°C to 650°C) Optional: to 3,632°F (2,000°C)	-40°F to 3,632°F (-40°C to 2,000°C)
Measurement Presets	7 presets: center spot; hot spot (box max); cold spot (box min); 3 spots; hot spot - spot (box max + spot + delta); hot spot - temperature (box max + ref temp + delta); no measurements	6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; user preset 1; user preset 2
UltraMax™	Included			N/A	Included
User Presets	N/A	Included
Spot Mode	5 moveable			10 moveable
Area Mode	Included
Profile	N/A	Included			N/A	Included
Color Alarm (isotherm)	Blue below, red above, yellow interval
Frame Rate	60 Hz			30 Hz
Field of View	25° × 19°
Optional Lenses	6°, 15° Tele, 45° & 90° Wide; Close up: 100 μm, 50 μm			25°, 7° & 15° Tele, 45° & 80° Wide; Close up: 100 μm, 50 μm, 25 μm
Focus	Manual & Automatic					Manual, Automatic, and Continuous
Continuous Auto Focus	N/A					Included
Min. Focus Distance	1.31 ft (0.4 m)			0.82 ft (0.25 m)
Radiometric Recording	N/A		CSQ to memory card	N/A			CSQ to memory card
Radiometric JPEG via USB	Included
Radiometric JPEG to SD Card	Included
MPEG4 to SD (non-radiometric IR)	Included
MPEG4 via USB (non-radiometric IR/Visual)	Included
Radiometric streaming via USB	Included
Display Size	3.5”			4.3”
Touchscreen	Standard			Capacitive touch screen
Auto Orientation	Included
MSX Thermal Image Enhancement	Included
Viewfinder	N/A					Included
Color (Palettes)	7: Arctic, White hot, Black hot, Iron, Lava, Rainbow, and Rainbow High Contrast
Battery Operating Time	>4 hrs			>2.5 hrs
Built-in Digital Camera	3.1 MP			5 MP
Built-in Illuminator LED	Included
Digital Zoom	2× and 4×	2×, 4× and 8×		2× and 4×	2×, 4× and 8×
MeterLink® connectivity	Included
Laser Pointer + Laser Locator (on IR image)	Included
Compass	Included			N/A	Included
GPS	N/A				Included
IR Window Correction	Included
Difference temperature/Delta T	Included
Picture in Picture	Scalable & Moveable
Notes	Included
Sketch on IR/Visual Image	N/A	Draw on screen or add predefined stamps
Voice/Text Annotation	Included
FLIR Tools for PC and Mac	Included
FLIR Tools Mobile app (Wi-Fi)	Included
Streaming Video via app (Wi-Fi)	Included
Remote Control via app (Wi-Fi)	Included
Weight (including battery)	1.94 lbs (0.88 kg)			2.87 lbs (1.3 kg)

*免責聲明：規格如有變更，熱像儀，恕不另行通知。可用性相機型號和附件受區域市場的考慮。
